Stainless steel Flanged Hex Bolts are used in a vehicle frame, aircraft and many other applications. These are mainly used with G flange and are used in industries like furnaces, pharmaceutical industries, chemical machinery and many more. Stainless steel High Tensile hex bolts are used in automobile industries. This is the one which is cost effective and are manufactured by using medium carbon steel. The prices of this bolt are reasonable and it depends upon the demand in the market.
Heavy Hex Bolts
Stainless Steel Hex Bolt
Hex Cap Screw
Stainless Steel Metric Hex Bolts is available with A2 stainless steel or zinc plated steel. The material which are used for this are stainless steel, Inconel, duplex, Hastelloy, Monel, super duplex and lot more. There are many Hex bolts manufacturers but the one which is renowned and ISO certified is regal sales corporation. We are the 20 years old organization and we use high-grade material to manufacture this product. A trust-worthy manufacturer and hence our standard is maintained in the market.
With the help of austenitic alloys, stainless steel hex cap screw is manufactured. The resistance power is superb and in high temperature, the strength is excellent. 316 SS Hex bolts usually contains higher Nickel and Molybdenum content. It is the one the weldability is excellent and is used in applications like oil refineries, aluminium fabrication and in many other industries.
Stainless steel hex bolt is designed in a hexagonal way which are large in sizes. It consists of 18% nickel and 8% chromium. The corrosion resistance level is excellent and is non-magnetic. IT can sustain on any of the climatic conditions and this is the superior one compared to any other steel products elements. These are used in steel industry and other pipes. The thread used in stainless steel heavy hex bolts are shorter ones. These are used in a tap holes and are available in grades like Grade 2, Grade 5, Grade 8. The size of this is M2-M100 and many more details will be found.
Product name | Stainless Steel Hex Bolt |
---|---|
Place of Origin | India |
Standard | ISO 4017, DIN931, GB5783, DIN, ASTM, ANSI, JIS, EN, AS |
DIN Standard | B.S. DIN933 DIN931 DIN934 DIN912 DIN603 DIN6923 |
|
Passivation /plain |
Finishing | Zinc Plated (Yellow, White, Blue, Black), Hop Dip Galvanized (HDG) phosphorization, Black Oxide, Geomet, Dacroment, anodization, Nickel plated, Zinc-Nickel plated, Brass Plated, Tin Plated, Black Plated, Copper Plated, Gold Plated, Salt fog test |
Stainless Steel Hex Bolt Size | M2 – M100 |
Stainless Steel Hex Bolt Diameter | M3-M60 |
Stainless Steel Hex Bolt Length | 6mm-500mm |
Head | Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc |
Neck type | Hex, Square, Triangular, Oval & Knurled etc |
Drive type | Phil, Slotted, Hex socket, Torx & square slot etc |
Stainless Steel Hex Bolt Application | Wind tower, Nuclear power, Railway, Automotive industry, Construction, Electronic industry |
Dimensions | ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded. |
Drive Style | Type I |
Stainless Steel Hex Bolt Material | 18-8 Stainless Steel, stainless steel ss 304/ SS316 A2/A4, SS201, SS303, SS304, SS316, SS316L, SS904L, A2-70; A4-70; A4-80 |
Thread Requirements | ASME B1.1, UNC & UNF, Class 2A (Fastenal will inspect and accept parts with a 1A no-go gauge) |
Finish | Per ASTM A380/A380M |
Stock Products | Stainless steel: All DIN, GB Standard and part ASNI standard stainless steel Hex Bolt, Example: ISO7380, DIN7981, DIN7982, DIN916, DIN913, DIN7985, DIN912 |
Production technology | Cold Forged |
Manufacturing Process | Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing |
Surface treatment of stainless steel Hex Bolt |
|
MOQ | 10 pieces |
Delivery time | Regular product is about 7-15 days, custom product will according to special requirement |
Others | OEM, ODM, ±0.03MM tolerance |
Coatings | Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request |
Tolerance of stainless steel Hex Bolt | +/-0.01mm to +/-0.05mm |
Samples | Yes |
Production Capacity | 2,700,000 pieces per month |
Payment Terms | T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping |
NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEHigh Tensile | ACROHex THE FLATS | ACROHex CORNERS | ||||
---|---|---|---|---|---|---|---|---|
D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |

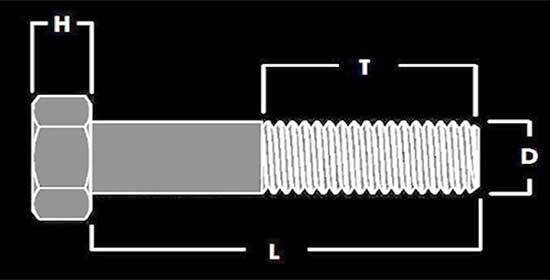

Diameter (D) | Body Diameter (D) | Across the Flats (F) | Across the Corners © | Head Height (H) | Thread Lengths (T) | |||||
---|---|---|---|---|---|---|---|---|---|---|
MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | < 6” | > 6” | |
1/2 | 0.515 | 0.482 | 0.875 | 0.85 | 1.01 | 0.969 | 0.364 | 0.302 | 1.25 | 1.5 |
5/8 | 0.642 | 0.605 | 1.062 | 1.031 | 1.227 | 1.175 | 0.444 | 0.378 | 1.5 | 1.75 |
3/4 | 0.768 | 0.729 | 1.25 | 1.212 | 1.443 | 1.383 | 0.524 | 0.455 | 1.75 | 2 |
7/8 | 0.895 | 0.852 | 1.438 | 1.394 | 1.66 | 1.589 | 0.604 | 0.531 | 2 | 2.25 |
1 | 1.022 | 0.976 | 1.B2 | 1.575 | 1.876 | 1.796 | 0.7 | 0.591 | 2.25 | 2.5 |
1 1/8 | 1.149 | 1.098 | 1.812 | 1.756 | 2.093 | 2.002 | 0.78 | 0.658 | 2.5 | 2.75 |
1 1/4 | 1.277 | 1.223 | 2 | 1.938 | 2.309 | 2.209 | 0.876 | 0.749 | 2.75 | 3 |
1 3/8 | 1.404 | 1.345 | 2.188 | 2.119 | 2.526 | 2.416 | 0.94 | 0.81 | 3 | 3.25 |
1 1/2 | 1.531 | 1.47 | 2.375 | 2.3 | 2.742 | 2.622 | 1.036 | 0.902 | 3.25 | 3.5 |
1 3/4 | 1.785 | 1.716 | 2.75 | 2.662 | 3.175 | 3.035 | 1.196 | 1.054 | 3.75 | 4 |
2 | 2.039 | 1.964 | 3.125 | 3.025 | 3.608 | 3.449 | 1.388 | 1.175 | 4.25 | 4.5 |
2 1/4 | 2.305 | 2.214 | 3.5 | 3.388 | 4.041 | 3.862 | 1.548 | 1.327 | 4.75 | 5 |
2 1/2 | 2.559 | 2.461 | 3.875 | 3.75 | 4.474 | 4.275 | 1.708 | 1.479 | 5.25 | 5.5 |
2 3/4 | 2.827 | 2.711 | 4.25 | 4.112 | 4.907 | 4.688 | 1.869 | 1.632 | 5.75 | 6 |
3 | 3.081 | 2.961 | 4.B2 | 4.475 | 5.34 | 5.102 | 2.06 | 1.815 | 6.25 | 6.5 |
