Super Duplex Pipe Flanges are suitable for application in industrial equipment and many other features like corrosion resistance, mechanical and structural properties, high thermal conductivity, high strength and many more. This product is tested and also proper packaging and dispatching is done. Super duplex 2507 flanges are the one where 25% chromium, 4 % molybdenum and 7% nickel is provided. Based on this the product is manufactured and is then represented in the market.
Super duplex flanges have its unique features and properties and also the strength of the product is excellent. This is an austenitic stainless steel that includes various contents like chromium, nickel and copper. These are used in almost various industries like mechanical, chemical and also in varied shapes. Super Duplex S32750 flange is usually designed for high strength, corrosion cracking, and resistance to pitting and it as high thermal conductivity. This is the product which is used in many other industries like mechanical, chemical and many more.
Super Duplex Slip on Flanges are manufactured by regal sales corporation. We are specialized in steel industries and we offer high quality material because of which the product is made. An ISO certified company and 20 years old organization; we offer various types of flanges and other products at reasonable rates.
Super Duplex 2507 Flanges
2507 Stainless Steel Slip on Flange
UNS S32760 Blind Flange
Super duplex steel flanges are considered to be famous or are well-known for its best features and properties. High corrosion resistance and durability is available here. This is used in applications like mechanical industries, chemical factories and in many other sectors. There are various grades and types of this flanges which are used in various industries. Super duplex stainless steel flanges are manufactured by using high quality material and thus this product is highly in demand in the market. These are available in different sizes, shapes and is thus the working temperature is up to 300 degree C.
Size Chart | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
---|---|
Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
Production technique |
|
Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
Equipment | Bending machine, Pushing Machine,Press machine, electric bevelling machine, Sand-blasting machine etc |
Origin | Indian / West Europe / Japan / USA / Korean |
Special design |
As per your drawing AS, ANSI, BS, DIN and JIS |
Test | Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector |
Most common types | Forged / Threaded / Screwed / Plate |
distributors are located in | Manama, Bogota, Gujarat, Gurgaon, Calgary, Ludhiana, Pimpri-Chinchwad, Abu-Lagos, Jamshedpur, Riyadh, Dammam, Courbevoie, Noida, Port-of-Spain, Delhi, Mumbai, Mexico, Dhabi, Baroda, Bangalore, Surat, Tehran, Kolkata, Perth, Thiruvananthapuram, Coimbatore, Bengaluru, Rajkot, Sydney, Gimhae-si, Caracas, Ahvaz, Melbourne, Chennai, Karachi, Kanpur, Ludhiana, Muscat, Ernakulam, Istanbul, Montreal, Ahmedabad, Ranchi, London, Kuwait, Vadodara, Janeiro, Howrah, Nagpur, Santiago, Tau, Ankara, Hyderabad, Khobar, Indore |
Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
Manufacturer of |
ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
|
Uses & application |
|
Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 |
Price list of Super Duplex 2507 Flanges | DIN 1.4462 Flanges Price in INR | DIN 1.4462 Flanges Price in USD | DIN 1.4462 Flanges Price in UAE Dirham |
---|---|---|---|
SUPER DUPLEX SS SEAMLESS PIPE FITTING SW RF FLANGE | 2,411 | $31.78 | UAE Dirham 116.76 |
2507 SUPER DUPLEX Slip on Flanges
SA 182 GR 2507 Weld neck Flanges
Super Duplex Steel S32760 WNRF Flange
Super Duplex 2507 Socket weld Flanges
ASTM A182 Type Super Duplex 2507 Threaded Flanges
ASME SA182 Super Duplex Steel S32750 Forged Flanges
Duplex 2507 Stainless Steel BLRF Flange
Super Duplex Steel S32760 Blind Flanges
ASTM A182 Type 2507 Duplex Lap Joint Flanges
Duplex Alloy 2507 Reducing Flange
Super Duplex Din 1.4410 Flat Flange
Super Duplex Steel S32750 RTJ Flange
AISI S32760 Ring Type Joint Flanges
UNS S32760 Super Duplex 2507 Spacer Ring Flanges
Saf 2507 Orifice Flanges
Super Duplex 2507 Din 1.4410 SORF Flange
SA 182 GR 2507 Spectacle Blind Flanges
Super Duplex Steel Werkstoff No 1.4410 SWRF Flange
1.4410 Super Duplex 2507 Plate Flanges
S32760 Super Duplex 2507 Long weld Neck Flanges
STANDARD | UNS | WERKSTOFF NR. |
Super Duplex S32750 | S32750 | 1.4410 |
Super Duplex S32760 | S32760 | 1.4410 |
S32750 / S32760 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
7.8 g/cm3 | 1350 °C (2460 °F) | Psi - 80000 , MPa - 550 | Psi - 116000 , MPa - 800 | 15 % |
S32750 / S32760 | C | N | P | Si | Mn | Mo | Ni | Cr | S | Other |
0.030 | 0.24/0.32 | 0.035 | 0.80 | 1.20 | 3.0/5.0 | 6.00/8.00 | 24.0/26.0 | 0.020 | Cu:0.50 |
2507 Super Duplex Spades & Ring Spacers | S32750 Super Duplex Nipoflange |
2507 Stainless Steel 5D Weldoflange | UNS S32750 Flange Outlet |
Super Duplex 2507 Flange | S32750 Super Duplex Blind Flange |
ASME SA240 Super Duplex Slip on Flange | 2507 Stainless Steel Threaded Flange |
Super Duplex SS 2507 Long Weld Neck Flanges | ASME SA240 Super Duplex Spectacle Blind Flanges |
Super Duplex 2507 Forged Flanges | Super Duplex SS 2507 Plate Flange |
2507 Stainless Steel Ring Type Joint Flanges | 2507 Super Duplex Raised Face Flanges |
ASTM A240 Super Duplex Tongue and Groove Flanges | ASME SA240 Super Duplex Male and Female Flange |
UNS S32750 Reducing Flanges | S32750 Super Duplex ASME B16.5 Flanges |
Super Duplex 2507 Flanges | Super Duplex SS 2507 BS 10 Flanges |
2507 Super Duplex BS 4504 Flanges | 2507 Stainless Steel EN 1092-1 Flanges |
2507 Super Duplex Reducing Flange | Super Duplex SS 2507 Socket Weld Flange |
UNS S32750 Weld Neck Flanges | ASTM A240 Super Duplex Lap Joint Flanges |
UNS S32750 SORF Flange | ASME SA240 Super Duplex BLRF Flange |
S32750 Super Duplex WNRF Flange | Super Duplex 2507 Series a Lap Joint Ring Flange |
2507 Super Duplex threaded lap joint flange | S32750 Super Duplex Slip On Integral flange |
ASTM A240 Super Duplex Forged integral puddle flange | 2507 Stainless Steel table e long weld neck |
ASME SA240 Super Duplex Class 150 LBS Flange | ASTM A240 Super Duplex PN10 Forged Flanges |
2507 Stainless Steel Forged steel slip on flanges | S32750 Super Duplex Race face slip on flange |
Super Duplex 2507 SWRF Flange | ASTM A240 Super Duplex Forged blind flange |
ASME SA240 Super Duplex groove weld neck flange | Super Duplex SS 2507 Socket Weld Hub Flange |
Super Duplex SS 2507 PN16 blind flange | 2507 Super Duplex Forged Socket Weld Pipe Flange |
ASME SA240 Super Duplex Class 300 slip on flange | UNS S32750 Slip On Weld Flange |

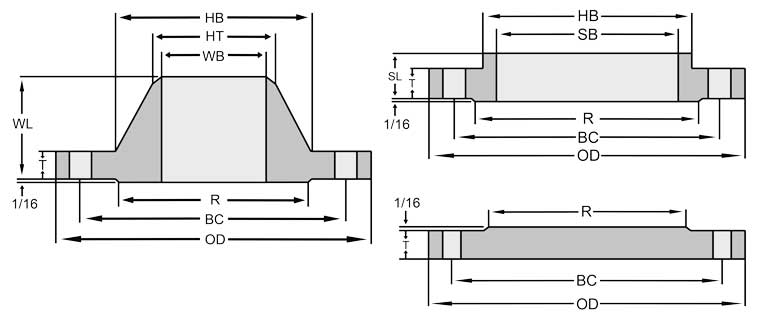

Nominal Size |
Outside Diameter (OD) |
Min. Thickness (T) |
RF Dia. (R) |
No. of Bolt Holes | Diameter of Holes |
Bolt Circle (BC) |
SO Bore ID (SB) |
WN Bore ID (WB) |
Dia. Hub Base (HB) |
Dia. of Hub Top (HT) |
SO LTH (SL) |
WN LTH (WL) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
1⁄2 | 3.50 | 0.38 | 1.38 | 4 | 0.62 | 2.38 | 0.88 | 0.62 | 1.19 | 0.84 | 0.56 | 1.81 |
3⁄4 | 3.88 | 0.44 | 1.69 | 4 | 0.62 | 2.75 | 1.09 | 0.82 | 1.50 | 1.05 | 0.56 | 2.00 |
1 | 4.25 | 0.50 | 2.00 | 4 | 0.62 | 3.12 | 1.36 | 1.05 | 1.94 | 1.32 | 0.62 | 2.12 |
11⁄4 | 4.62 | 0.56 | 2.50 | 4 | 0.62 | 3.50 | 1.70 | 1.38 | 2.31 | 1.66 | 0.75 | 2.19 |
11⁄2 | 5.00 | 0.62 | 2.88 | 4 | 0.62 | 3.88 | 1.95 | 1.61 | 2.56 | 1.90 | 0.81 | 2.38 |
2 | 6.00 | 0.69 | 3.62 | 4 | 0.75 | 4.75 | 2.44 | 2.07 | 3.06 | 2.38 | 0.94 | 2.44 |
21⁄2 | 7.00 | 0.81 | 4.12 | 4 | 0.75 | 5.50 | 2.94 | 2.47 | 3.56 | 2.88 | 1.06 | 2.69 |
3 | 7.50 | 0.88 | 5.00 | 4 | 0.75 | 6.00 | 3.57 | 3.07 | 4.25 | 3.50 | 1.12 | 2.69 |
31⁄2 | 8.50 | 0.88 | 5.50 | 8 | 0.75 | 7.00 | 4.07 | 3.55 | 4.81 | 4.00 | 1.19 | 2.75 |
4 | 9.00 | 0.88 | 6.19 | 8 | 0.75 | 7.50 | 4.57 | 4.03 | 5.31 | 4.50 | 1.25 | 2.94 |
5 | 10.00 | 0.88 | 7.31 | 8 | 0.88 | 8.50 | 5.66 | 5.05 | 6.44 | 5.56 | 1.38 | 3.44 |
6 | 11.00 | 0.94 | 8.50 | 8 | 0.88 | 9.50 | 6.72 | 6.07 | 7.56 | 6.63 | 1.50 | 3.44 |
8 | 13.50 | 1.06 | 10.62 | 8 | 0.88 | 11.75 | 8.72 | 7.98 | 9.69 | 8.63 | 1.69 | 3.94 |
10 | 16.00 | 1.12 | 12.75 | 12 | 1.00 | 14.25 | 10.88 | 10.02 | 12.00 | 10.75 | 1.88 | 3.94 |
12 | 19.00 | 1.19 | 15.00 | 12 | 1.00 | 17.00 | 12.88 | 12.00 | 14.38 | 12.75 | 2.12 | 4.44 |
14 | 21.00 | 1.31 | 16.25 | 12 | 1.12 | 18.75 | 14.14 | 13.25 | 15.75 | 14.00 | 2.19 | 4.94 |
16 | 23.50 | 1.38 | 18.50 | 16 | 1.12 | 21.25 | 16.16 | 15.25 | 18.00 | 16.00 | 2.44 | 4.94 |
18 | 25.00 | 1.50 | 21.00 | 16 | 1.25 | 22.75 | 18.18 | 17.25 | 19.88 | 18.00 | 2.62 | 5.44 |
20 | 27.50 | 1.62 | 23.00 | 20 | 1.25 | 25.00 | 20.20 | 19.25 | 22.00 | 20.00 | 2.81 | 5.62 |
22 | 29.50 | 1.75 | 25.25 | 20 | 1.38 | 27.25 | 22.22 | 21.25 | 24.25 | 22.00 | 3.07 | 5.82 |
24 | 32.00 | 1.81 | 27.25 | 20 | 1.38 | 29.50 | 24.25 | 23.25 | 26.12 | 24.00 | 3.19 | 5.94 |
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
---|---|---|---|---|---|---|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
AS 2129 Flange
|
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
ANSI B16.5 Flanges
|
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
ISO 7005 (DIN) Flange
|
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
